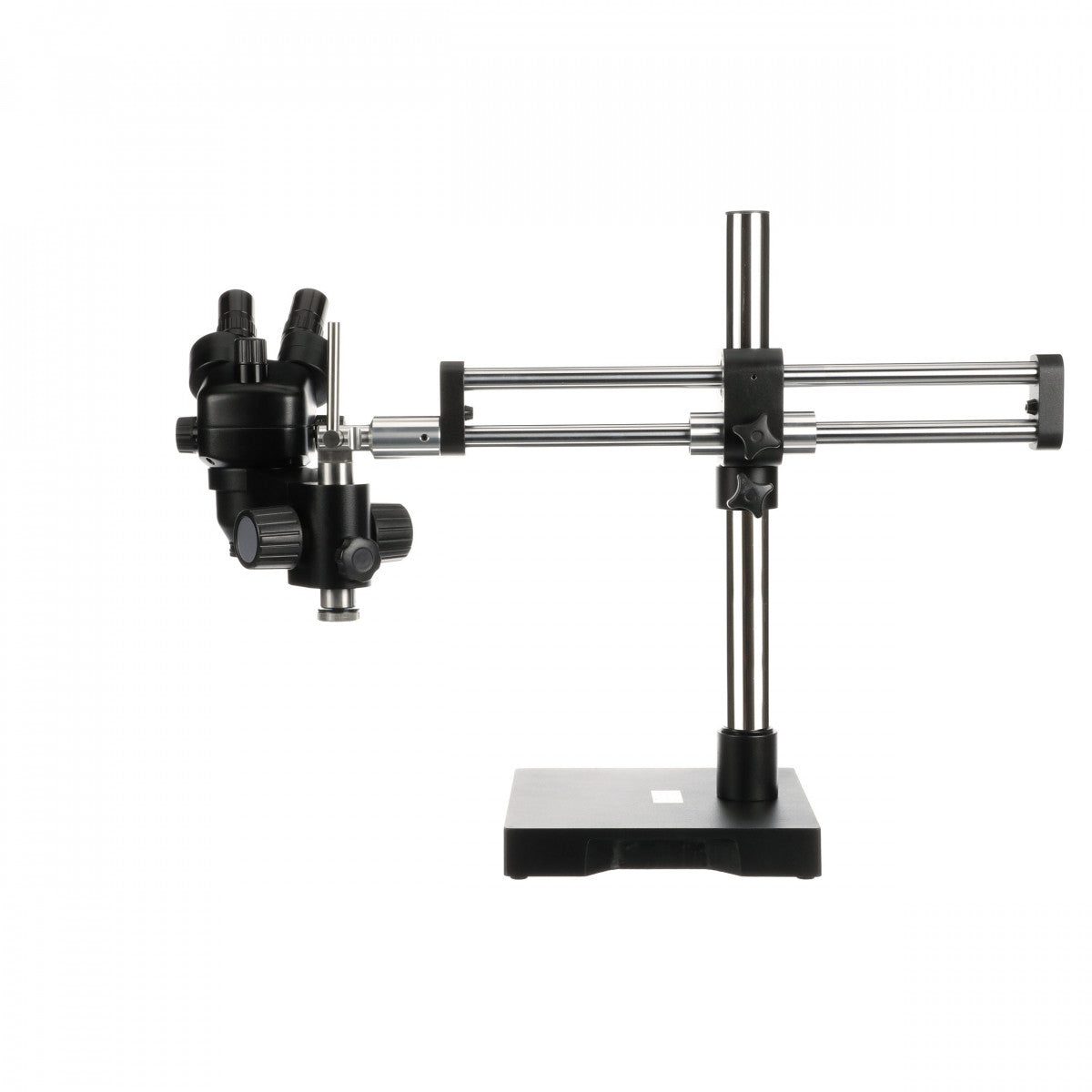

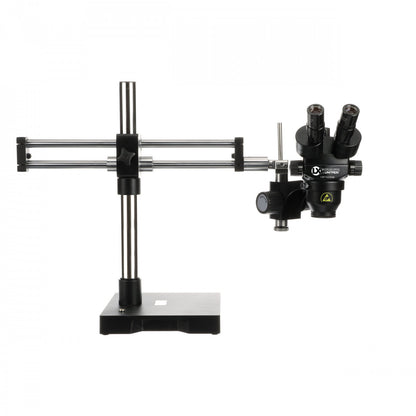

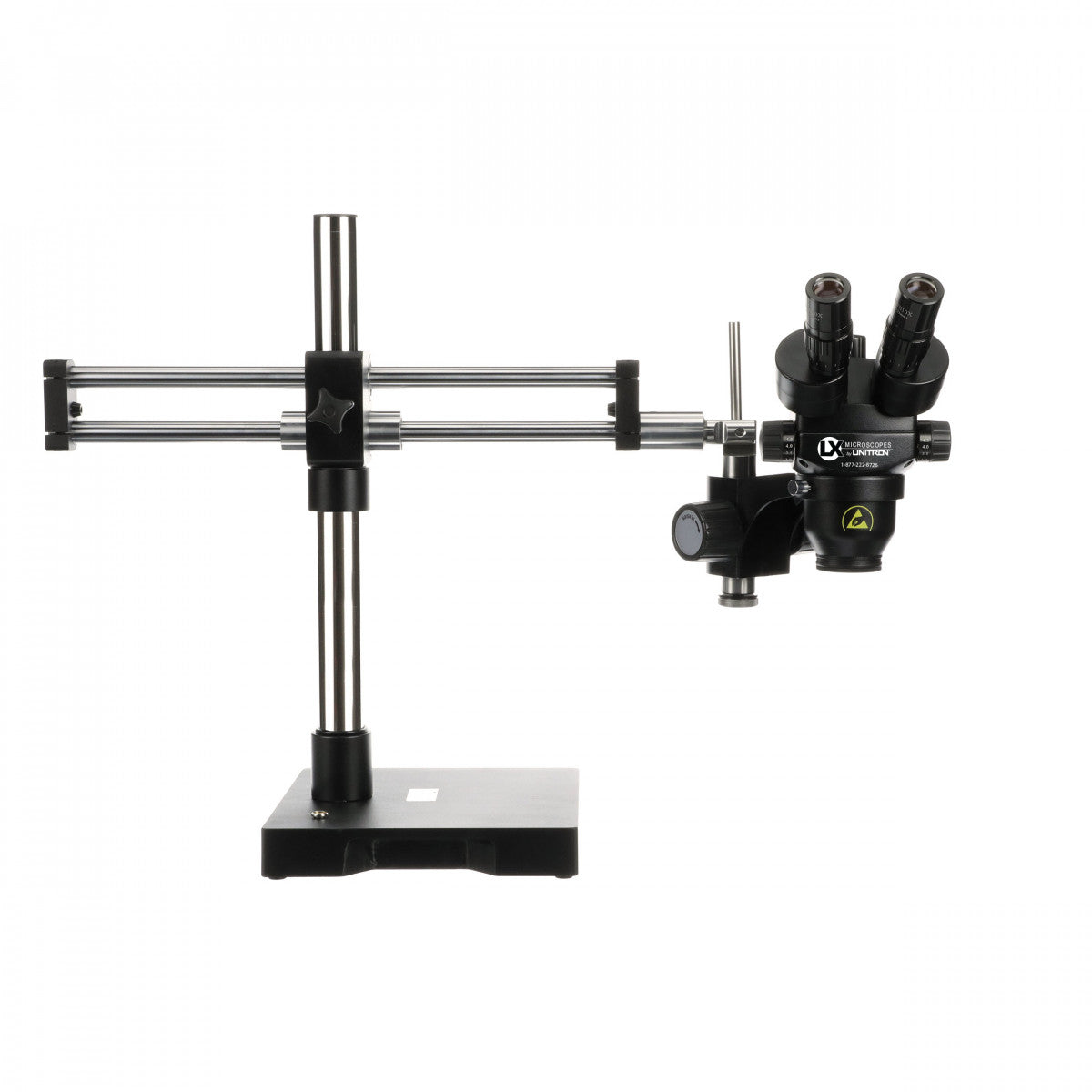

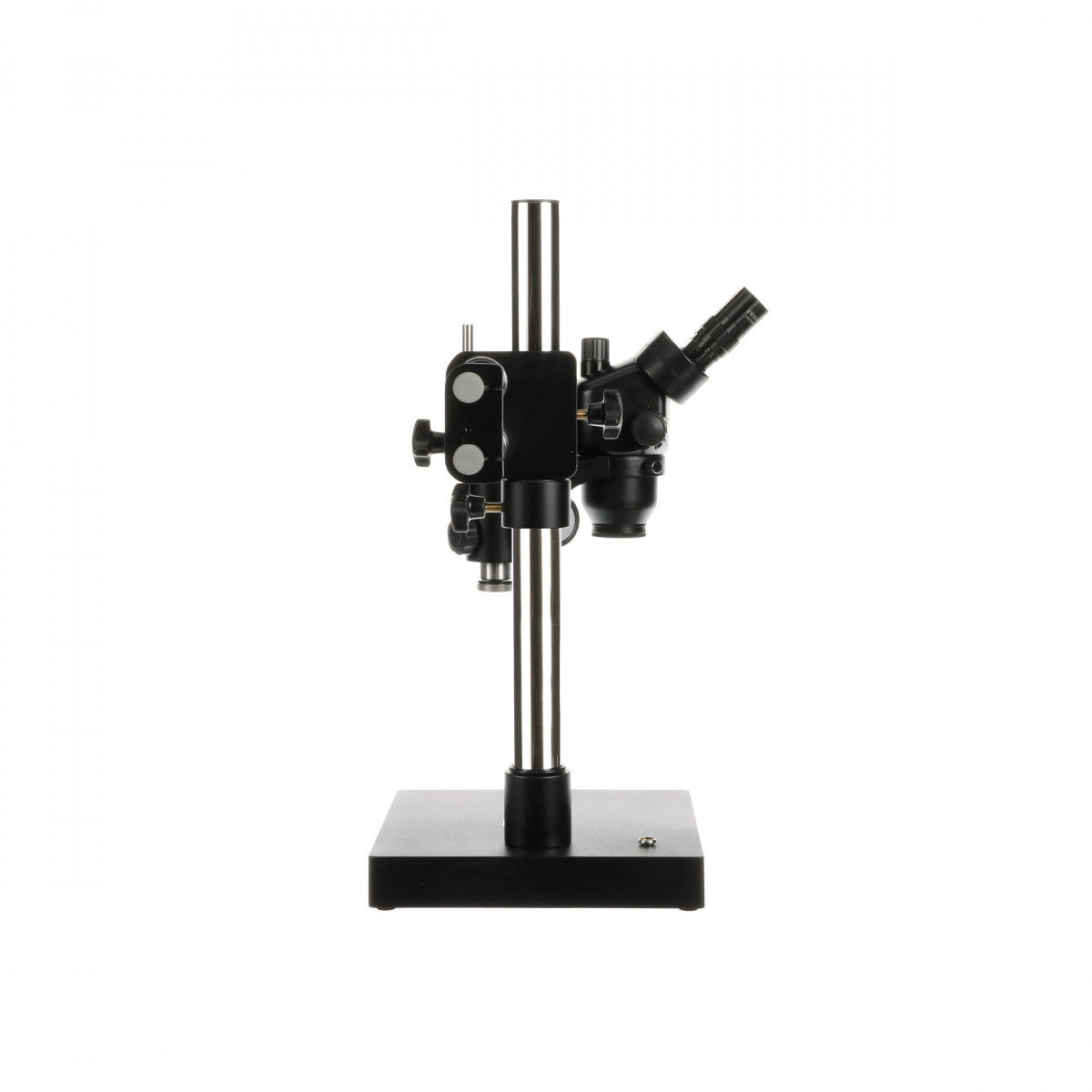

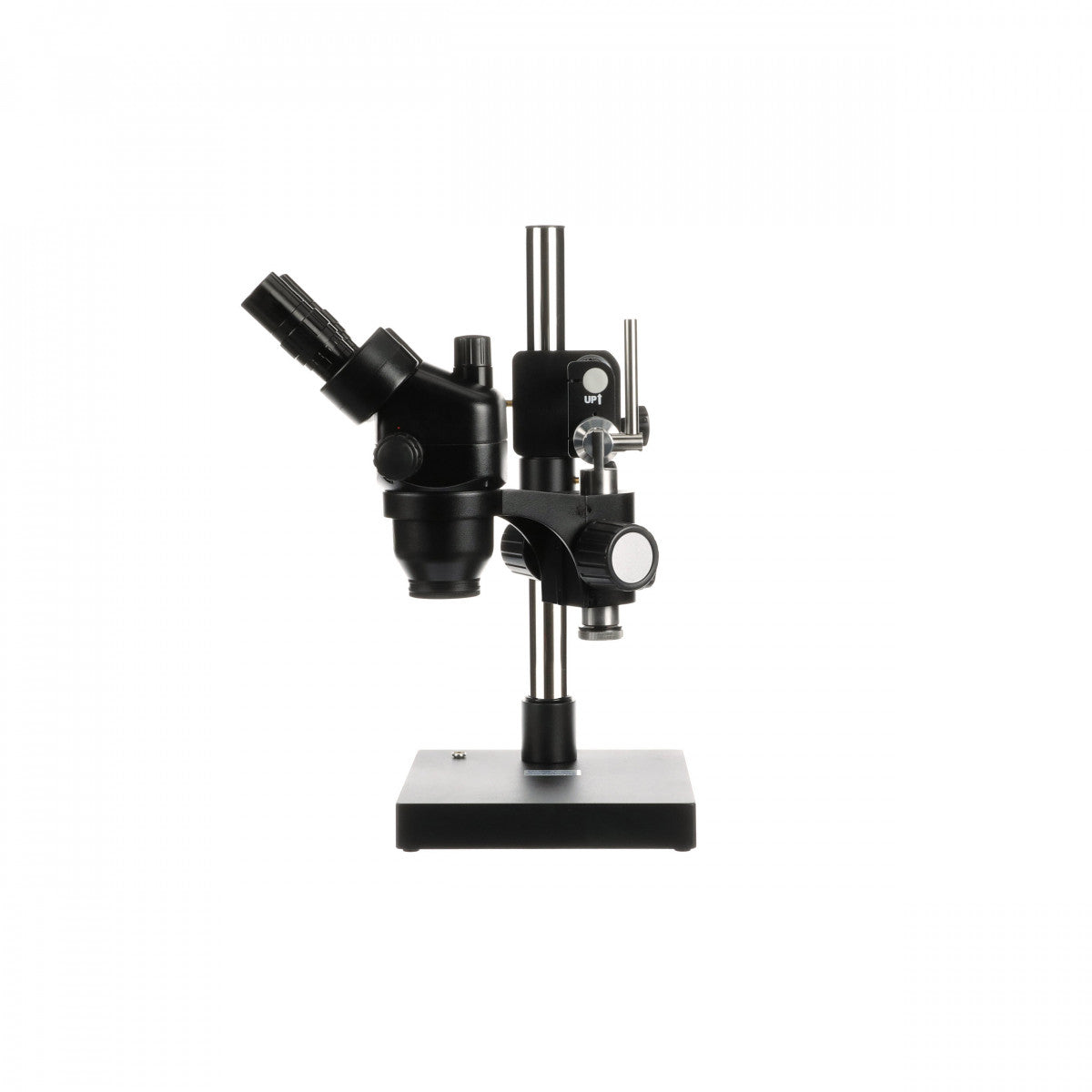

System 373RB-TRT-ESD, S-Z 23mm Tru Trinocular, RB Stand, ESD-Safe
Specifications
ESD-safe. Body and stand feature baked-on powder-coated with a metal-laced paint that measures 105Ω/sq. (static dissipative)
TRU Trinocular viewing head allows operator to use camera port and both eyepieces simultaneously. Features a click-stop detent at each marking on the zoom knobs to help hold and find a specific magnification.
Super widefield 10x/23mm eyepieces with eyeshields
High-quality achromat lenses with anti-reflective coatings
0.7x – 4.5x zoom magnification range controlled by graduated knobs on both sides of the viewing head
Click-stops on the zoom knob at 1.0, 2.0, 3.0 and 4.0 ensure repeatable magnification changes
Magnification range 7x-45x (with 10x eyepieces)
8″ working distance (when used with optional 0.5x reducing lens)
Heavy duty cast aluminum housing
Dual boom roller-bearing stand with 17.5″ vertical and 22″ horizontal reach (10″ x 10″ base); Focus mount angles to 45° to permit additional viewing and inspection perspectives.
